Rhino 500D

Rhino 500D is a new generation TMT rebar with improved ductility and elongation in Nepal. It is superior to other standard rebars due to its manufacturing technology and combination of mechanical and chemical qualities. Rhino 500D has a combined restriction of impurities such as Sulphur, Phosphorous, and Carbon to a maximum of 0.75% and 0.25%, ensuring exceptional ductility, elongation, and strength. Rhino 500D heralds the start of a new quality standard for steel rebars in Nepal!

Rhino 500D marks the beginning of quality benchmark for steel rebars in Nepal.



How Jagdamba Steels Fulfills its Commitment

Our products are all made in a state-of-the-art automated plant with a strong focus on maintaining the highest standards of quality and workmanship. We are the only company in Nepal to follow a rigorous 3-level Controlled Production Process to guarantee that we only deliver world-class products.

Controlled Raw Material

In the Controlled level of production, the first stage is the 'Control of Raw Materials'. To ensure that our products are of the highest quality, we use raw materials exclusively imported from renowned companies like TATA Steel, JINDAL Steels, IISCO, and SAIL. Furthermore, the raw materials undergo rigorous quality tests at our state-of-the-art computerized facility.

Controlled Production Process

All products are manufactured at a cutting-edge automated plant, which is the only one of its kind in Nepal. The automation process guarantees uniformity in quality for all products. During production, the products are thoroughly tested through both chemical and physical methods at state-of-the-art, fully computerized labs. These tests provide instant results and allow for faster intervention and compliance with NS and BIS (IS) quality standards.

Controlled Parameters

Ensuring uniformity of physical and chemical parameters is crucial to maintaining the high quality of products. This is achieved by implementing automated systems in the production process as well as conducting physical and chemical tests. The physical and chemical parameters are strictly monitored and adhere to the minimum and maximum standards set by NS: 191, Nepal Bureau of Standards and Metrology Certification Standards, and Indian BIS, IS: 1786: 2008 Certification Standards for Steel Rebar.



High Ductile Rebar; First Time in Nepal and For Nepal.

HIgh-Ductile-Rebar.jpgRhino 500D Rebar is the first and only TMT steel rebar in Nepal that meets the Fe 500D grade with superior ductility. Its introduction has set a new industry benchmark for quality steel rebars in Nepal. This rebar is highly suitable for use in areas prone to seismic risks, such as Nepal, due to its superior ductility and earthquake resistance properties. Rhino 500D is the only new-generation rebar that truly meets the need for seismic-resistant construction in Nepal.



Because Safety Matters!
Rhino 500D Steel Rebar Matters!

Jagdamba Steel is the largest integrated steel company in Nepal. As a leader in the industry, they carry the responsibility of staying the best. Recently, they have introduced Rhino 500D Steel Rebars, which is a game-changer in steel making. The company has developed Fe 500D grade Rhino Rebars using 100% special quality raw materials that are imported and manufactured through an automated controlled production process and quality control management route. This is the first time in Nepal that rebars have been produced using this process to meet the more stringent needs of our country and seismic zone.

Rhino 500D Rebar is known for its high ductility and superior earthquake resistance properties. It assures the highest standards in quality and safety of construction and lives.

Safety Matters.png
Steel Quality.png

Chemistry Controls Steel Quality…We Control the Chemistry of Steel!

Steel bars can have their properties affected by impurities like sulfur, phosphorus, and carbon, especially in extreme weather conditions. Rhino 500D rebars are made using an advanced process that restricts the impurities to a maximum value of 0.40% for sulfur and phosphorous, and 0.25% for carbon. We ensure the highest quality of raw materials by exclusively importing billets and blooms from world-class steel companies like TATA Steel, JINDAL Steel, and IISCO. For added assurance, the raw materials undergo quality testing using a spectrometer in a state-of-the-art automated lab before production. The production process is controlled at three levels and carried out in a controlled environment, ensuring that the chemical and physical properties comply with NS:191 and BIS (IS:1786:2008) certification standards.

Superior Process and Product Quality

Rhino 500D Rebars are superior to traditional rebars in the market due to their superior making and precision in maintaining physical and chemical properties. Sulfur and phosphorous (S&P) are harmful impurities in steel that can cause issues such as 'cold shortness' and 'hot shortness'. Cold shortness makes the steel brittle in extremely cold conditions, while hot shortness reduces its strength under high-temperature conditions. Achieving low levels of S&P as specified in NS and BIS specifications is impossible under normal steelmaking and rebar production processes. However, Rhino 500D Rebars import raw materials, such as billets and blooms, from world-class steel companies and use state-of-the-art automated and controlled rebar production technology, along with stringent quality controls at every step of the process, to ensure that the finished rebars comply 100% to the quality standards of Fe 500D grade specification of NS: 191 and BIS (IS: 1786:2008) certifications.

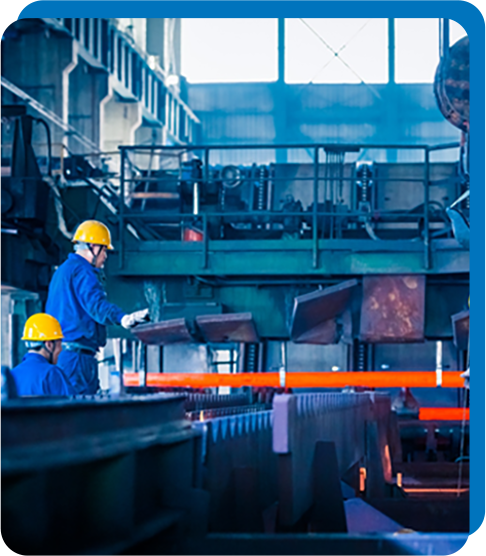

Product Quality.png

The Process & Technology

Rhino 500D High Ductile Rebars are produced at the most advanced rolling mill in Nepal, located in Simara, Bara. The rebars are made using the latest 'TMT Technology' and undergo a 3-level Controlled Production Process to ensure they meet quality standards that exceed the NS:191 and BIS (IS: 1786:2008) Certification Standards.


Raw Materials

Producing Rhino SOOD Premium High Ductile Rebars require special Fe 5OOD Grade Billets and Blooms which are exclusively imported from world class steel companies like TATA Steel, JINDAL Steel, IISCO and SAIL. The sourcing of high-quality raw materials is followed by stringent quality test to ensure that only the raw materials with right composition go in to production.

High Sulphur Effect, Phosphorous Effect and Carbon Effect

Rhino Fe 5OOD Rebars have lower percentage of Carbon, Sulphur, and Phosphorus. The low carbon content ensures sufficient ductility and superior weldability for all types of welding without preheating. The impurities like Sulphur and phosphorous tend to decrease the strength of steel in extreme weather conditions as hot shortness and cold shortness.

Steel Rolling

Most modern automated Rolling Mill applying latest "TMT Technology" to produce Rhino 5OOD Rebars with consistently high quality in every single Rebar.

Automated Re-heating Furnace

The Automated Gasified Re-heating Furnace not only ensures Uniform Heating but also ensures less fuel consumption.

TMT-Thermo Mechanical Treatment

The Rebars undergo Thermo-Mechanical Treatment in 3 successive stages;

a) Quenching

The hot rolled bar leaving the final mill stand is rapidly quenched by a special water spray system. This hardens the surface of the bar to a depth optimized for each section through formation of martensitic rim while the core remains hot and austenitic.

b) Self-Tempering

When the bar leaves the quenching box, the core remains hot compared to the surface, allowing heat to flow from the core to the surface, causing tempering of the outer martensitic layer in to a structure called 'Tempered Martensite'. The core still remains austenitic at this stage.

c) Atmospheric Cooling

This takes place on the automatic cooling bed where the austenitic core is transformed in to ductile 'Ferrite-Pearlite' Structure. Thus, the final structure consists of an optimum combination of a strong outer layer (tempered martensite) with a ductile core (ferrite -pearlite). This gives Rhino 5OOD its unique combination of higher ductility and strength.



Chemical Properties

With the low levels of Sulphur and Phosphorous, the Carbon levels are maintained at much lower than the specifications which results in its excellent ductility, high strength, high bendability, better corrosion resistant and superior weldability and earthquake resistant.

Particulars

Fe500

NS: 191 &

IS 1786:2008

Fe500D

NS: 191 &

IS 1786:2008

Rhino 500D

(Values)*

Carbon%

0.30 Max

0.25 Max

0.25 Max

Sulphur (S)%

0.055 Max

0.040 Max

0.040 Max

Phosphorus (P%)

0.055 Max

0.040 Max

0.040 Max

S+P%

0.105 Max

0.075 Max

0.075 Max

Nitrogen (PPM)

120

120

120

As Obtained in 90% of heats

Mechanical (Physical) Properties

The modern, automated and precision in quality control approach of manufacturing creates a combination of strength and ductility that far exceeds the minimum limit specified in the standards; NS:191 and BIS (IS:1786:2008). The typical values for Tensile Strength are Min 580 as against the Min 565 and elongation 18% as against 16% in the standard values. The superior values of strength and ductility is the guarantee of Rhino SOOD Rebar for higher levels of safety for years.

Particulars

Fe500

NS: 191 &

IS 1786:2008

Fe500D

NS: 191 &

IS 1786:2008

Rhino 500D

(Values)*

Yield Stress - YS (N/mm2)

Min 500

Min 500

Min 500

Tensile Strength - UTS (N/mm2)

Min 545

Min 565

Min 565

UTS/YS Ratio

1.08

1.10

1.10

% Enlongation

Min 12%

Min 16%

Min 16%

As Obtained in 90% of heats

Bend Test 180 Degree up to and including 20mm 3D and over 20mm 4D

Re- Bend Test 135 Then 157.5 Degree up to and including 10 mm 4D and Over 10mm 6D

Superior Features

Excellent Bonding with Concrete

Rhino 5OOD Rebars have precise, parallel and uniform rib pattern engraved through computer-controlled notch making machines resulting in excellent bond strength with concrete. The computer-controlled production ensures 100% uniform rib patterns across the length of the Rebar. This is in contrast to ordinary Rebars in which the ribs are cut manually and are non-uniform.

Excellent Bendability

The Special Microstructure of Rhino SOOD gives it excellent bendability (inspite of High Strength). The bar can be bent easily and sharply. Rhino SOOD Rebars can be bent to exact angle unlike ordinary Re bars as desired by the design around mandrels and is much smaller in diameter than what is specified in NS:191 Standards and 15: 1785:2008. This gives a better advantage by facilitating easy bending, making work easier and faster at construction sites.

Superior Weldability

Due to its low Carbon Equivalent, Rhino SOOD has Weldabilty which is superior to other normal Rebars. It can be butt-welded or lap-welded using ordinary rutile coated electrodes of matching strength. In case of manual arc welding no pre-warming or post-welding treatment is necessary.

Greater Earthquake Resistant Properties

Due to high UTS/YS Ratio Rhino SOOD Rebar offers high strength and ductility and thereby excellent Earthquake Resistant property which helps in minimum damage to the structure and hence minimizes casualties.

More Superior Elongation/Ductility

Fe SOOD is produced under controlled manufacturing process and have excellent bendability. It is worth mentioning that the minimum specified elongation for Fe SOOD is 15%. They have lower percentage of carbon, sulphur and phosphorus that ensures high/superior ductility compare to other Fe 500 grade bars.

Greater Resistance to Fire

The quenching and the self-tempering treatment at a temperature of approximately 550° [ results in a consistent and thick layer of tempered Martensitic-ring on the outer surface of the rebar imparting higher capacity to retain strength at elevated temperatures.

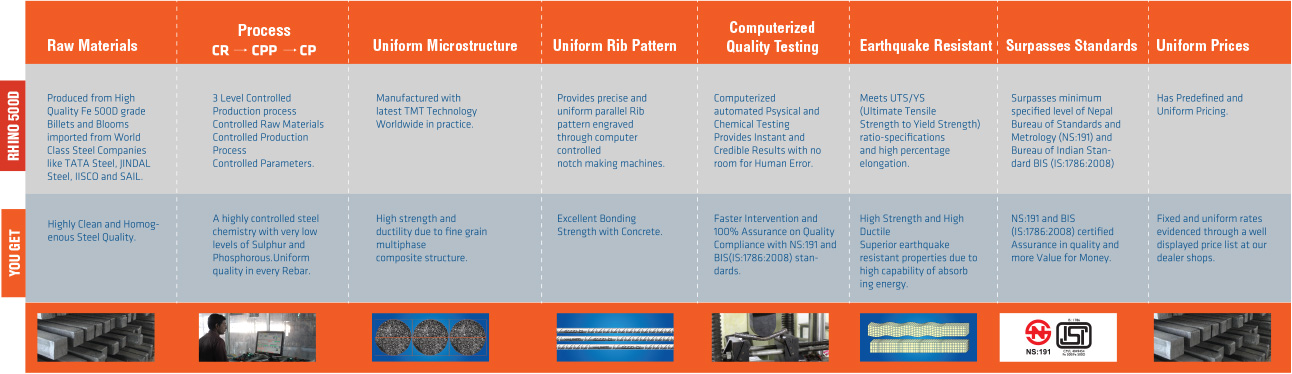

Advantage - How Rhino 500D is superior to Normal TMT Rebars





Applications

Rhino 500D Premium High Ductile Rebars are the best choice for construction projects in areas that are prone to seismic risks. These rebars are highly recommended for use in a range of construction projects, from small individual houses to large infrastructure projects. Due to the high seismic risk potential in Nepal and the recent occurrence of a major earthquake, Rhino 500D Premium High Ductile Rebars are the ideal choice for construction projects in the region.

These rebars are suitable for a variety of construction projects, including

  1. Small Individual Homes and Critical Structures in Seismic Zones III, IV, and V
  2. High-rise Buildings
  3. Bridges - flyovers - dams
  4. Foundations of Wind Turbine
  5. Industrial structures - Concrete Roads
  6. Underground Structures- Tunnels
  7. Thermal and Hydroelectric Power stations
  8. General-Purpose Concrete Reinforcement Structures.
rhino application.png




Availability

Rhino 5OOD Rebars are conveniently available in sizes 8 mm and up to 32 mm through exclusive retail points spread across Nepal. Also available in sizes 36 mm and 40 mm as per customary/project requirements. Each Rebar is supplied in a fixed length of 12 Meters to ensure standard processing and thereby causing less wastage during fabrication.





5 Good Reasons
Why You Should Buy
Rhino 500D TMT Rebars

  1. Globally Accepted Quality and highly recommended worldwide for applications in regions prone to high seismic risk. Ideally suitable for Nepal.
  2. Clean Steel with very low levels of impurities like Sulphur and Phosphorous.
  3. Guaranteed Ductility, First and only available in TMT Rebar in Nepal.
  4. Guaranteed Assurance in Quality.
  5. Fair Price and Easy Availability.
