H.Beams

Beams are fundamental structural elements crucial in providing support to buildings and structures by carrying loads and distributing them across their length.

These horizontal members play a pivotal role in maintaining structural integrity and stability. Various types of beams cater to specific construction needs, with each type possessing unique characteristics suited for diverse applications.

beams

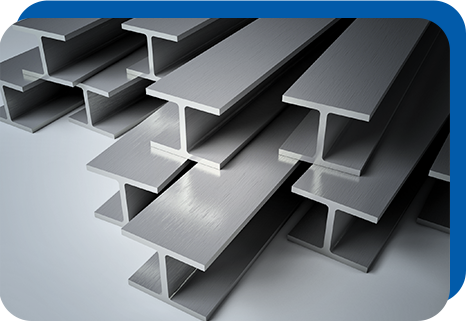

Types of Beams:

MS Joist (Mild Steel Joist):

  • Features:
    • Manufactured from mild steel for strength and durability.
    • Available in various sizes and dimensions.
    • Suitable for horizontal framing and load-bearing applications.
  • Applications:
    • Construction of floors, roofs, and other horizontal structures.
    • Industrial buildings, warehouses, and residential constructions.

H Beams:

  • Features:
    • Shaped like the letter 'H' to provide a higher load-bearing capacity.
    • Wide flanges contribute to increased stability.
    • Available in various sizes and lengths.
  • Applications:
    • Bridges, high-rise buildings, and heavy-load structures.
    • Industrial plants, shipbuilding, and infrastructure projects.

RS Joist Beam (Rolled Steel Joist):

  • Features:
    • Rolled steel construction for enhanced strength.
    • Lightweight yet sturdy design.
    • Versatile and easy to handle during installation.
  • Applications:
    • Residential and commercial construction.
    • Framework for mezzanines, floors, and roofing.



Features of Beams:

1. Load-Bearing Capacity:

All types exhibit robust load-bearing capabilities, ensuring structural stability.

2. Versatility:

Different sizes and shapes cater to a wide range of construction requirements.

3. Material Strength:

Manufactured from materials like mild steel and rolled steel for durability and resilience.

4. Dimensional Accuracy:

Precise manufacturing ensures dimensional accuracy, crucial for structural integrity.

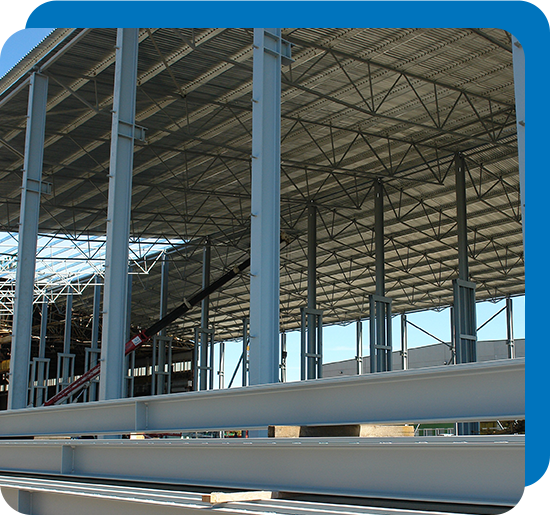

Applications of Beams:

1. Building Construction:

Beams form the framework for floors, roofs, and other structural components in residential and commercial buildings.

2. Industrial Structures:

In industrial settings, beams are integral for supporting heavy machinery, equipment, and constructing robust frameworks.

3. Bridges and Infrastructure:

H Beams find application in bridge construction and infrastructure projects due to their high load-bearing capacity.

4. Mezzanines and Platforms:

RS Joist Beams are commonly used in the creation of mezzanines and elevated platforms within buildings.

5. Residential Construction:

MS Joists are employed in residential constructions for floor and roof framing, providing stability and support.

beam



Quality Assurance:

At Jagdamba Steel, quality is the cornerstone of our operations. Our MS Joists are manufactured to meet industry standards and undergo rigorous quality control measures to ensure consistent quality and reliability. We take immense pride in delivering products that epitomize durability and performance.



Beams Weight and Sizes Chart:

MS JOIST

Size Tolerance on Depth +3 / -2

Width of Flange Tolerance Flange Width ± 2 mm

Flange Thickness

Web Thickness

Weight Kg/ Mtr Tolerances ± 2.5%

MB100

 50 mm 7.80 mm 4.70 mm 8.90
MB125 70 mm 8.00 mm 5.00 mm 13.30
MB150 75 mm 8.00 mm 5.00 mm 15.00
MB175 85 mm 9.00 mm 5.80 mm 19.60
MB200 100 mm 10.00 mm 5.70 mm 24.20
MB250 125 mm 12.50 mm 6.90 mm 37.30
MB300 140 mm 13.10 mm 7.70 mm 46.00
MB350 140 mm 14.20 mm 8.10 mm 52.40
MB400 140 mm 16.00mm 8.90 mm 61.50
MB450 150 mm 17.40 mm 9.40 mm 72.40
MB500 180 mm 17.20 mm 10.20 mm 86.90
MB550 190 mm 19.30 mm 11.20 mm 104.00
MB600 210 mm 20.30 mm 12.00 mm 123.00
  • All details are according to IS 1852, IS 808, and IS 2062

Physical Properties

Ultimate Tensile
N/mm2		 Yield stress
N/mm2		 Elongation
%
410 N/mm2 250 N/mm2 23.00

Chemical Properties

Carbon (C) % Sulphur (S) % Phosphorus (P) % Silicon (Si) % Carbon Equivalent (CE) %
0.23% 0.05% 0.05% 0.40% 0.42
