MS Angles

Discover the strength, versatility, and durability of MS (Mild Steel) Angles from Jagdamba Steels. These angular metal profiles are the go-to choice for a wide range of construction and fabrication applications. Whether you're working on a residential project, constructing an industrial facility, or tackling various other engineering needs, our MS Angles provide the structural integrity you can rely on.




Key Features:

Superior Strength:

Our MS Angles are forged from high-quality mild steel, ensuring a robust foundation for your construction or engineering project. These angles are designed to withstand heavy loads and offer the structural support you require.

Versatility

MS Angles are incredibly versatile. They come in various sizes and dimensions, making them suitable for diverse applications, including framing, supports, and structural components. This adaptability ensures they are a valuable addition to any project.

Easy Welding and Fabrication

MS Angles offer excellent weldability, making them ideal for on-site adjustments and custom fabrications. This characteristic allows you to achieve the exact angles and lengths needed for your specific project.

Corrosion Resistance

Jagdamba Steel's MS Angles are treated to resist corrosion effectively. This feature extends the lifespan of the angles, ensuring long-term structural stability and reducing maintenance needs.

Aesthetic Appeal

Beyond their structural benefits, MS Angles also contribute to the visual appeal of your projects. Their clean, angular lines can enhance the aesthetics of architectural and engineering designs.



Applications:

Our MS Angles are widely used across various industries and projects, including:

Construction:

Ideal for framing, bracing, and supporting structures in residential, commercial, and industrial construction.

Engineering:

Used in the fabrication of machinery, equipment, and other mechanical components.

Infrastructure:

Employed in the construction of bridges, walkways, and other infrastructure projects.

Architectural Projects:

MS Angles can also be an integral part of architectural designs, providing both structural support and aesthetic value.

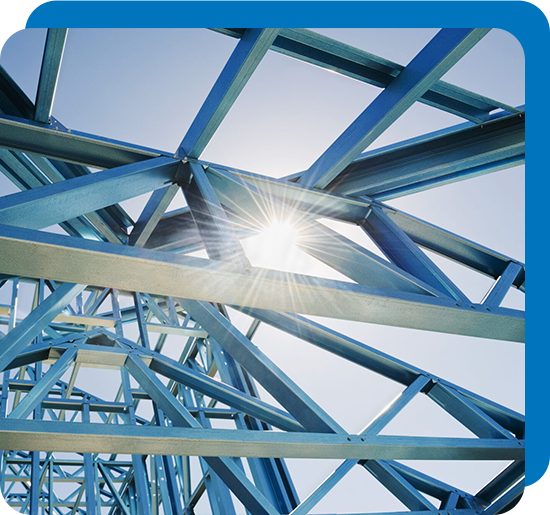

angl



Quality Assurance

At Jagdamba Steel, quality is our top priority. Our MS Angles are manufactured to meet industry standards and undergo rigorous quality control measures to ensure consistent quality and reliability. We take pride in delivering products that meet the highest standards of durability and performance.

MS Angle Weight & Size Chart

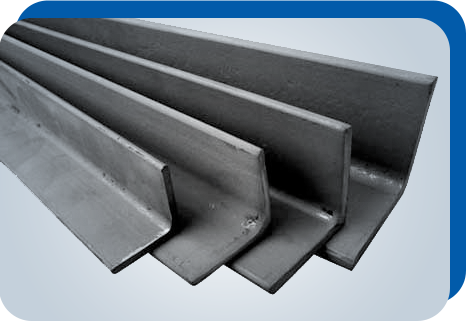

MS Angles

MS Angles are L-shaped structural steel represented by dimension of sides & thickness. Jagdamba Steels produces best quality MS Angles in Nepal

Section and Size(mm)

Standard Weight (KG/ Mtr) As Per IS 808

Length in Mtr
32 x 32 x 3 1.44 6

25 x 25 x3

 1.1 6

40 x 40 x 3

 1.81 6

40 x 40 x 5

 2.94 6
50 x 50 x 3 2.3 6
50 x 50 x 5 3.73 6

50 x 50 x 6

 4.5 6

65 x 65 x 5

 4.9 6

65 x 65 x 6

 5.8 6

65 x 65 x 8

 7.7 6

75 x 75 x 6

 6.8 6

75 x 75 x 8

 8.9 6

90 x 90 x 6

 8.2 6

90 x 90 x 8

 10.8 6

90 x 90 x 10

 13.4 6

100 x 100 x 6

 9.2 6
100 x 100 x 8 12.1 6

100 x 100 x 12

 17.7 6

110 x 110 x 8

 13.4 6

110 x 110 x 10

 16.6 6

130 x 130 x 12

 19.7 6

130 x 130 x 10

 19.7 6

150 x 150 x 10

 23.5 6

150 x 150 x 12

 22.9 6
  • Weight Tolerance IS 1852 Up To and Including 3 mm  2.5% and Above 3 mm +5% and -3%
  • Leg Tolerances Up To and Including 45 mm ± 1.5 mm and 44 mm to 100 mm ±2 mm and Above 100 mm ± 2%
  • All details are according to IS 2062, IS 808, and IS 1852

Physical Properties

Ultimate Tensile N/mm2

Yield Stress N/mm2

Elongation %

410 N/mm2

250 N/mm2

23



Chemical Properties

Chemistry

%

Carbon (C)

0.23

Sulphur (S)

0.05

Phosphorus (P)

0.05

Silicon (Si)

0.40

Carbon Equivalent (CE)

0.42
