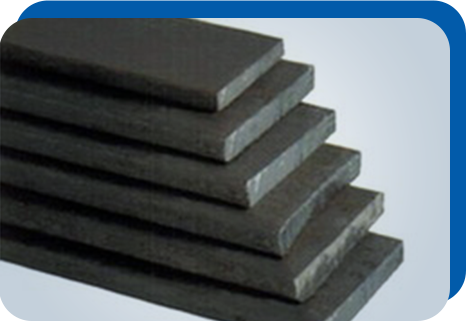

MS Flats

MS Flats are thin strips of mild steel with the thickness of the strip varying commonly from 12mm to 100mm. MS flat bars are flimsy portions of mild steel with the fluctuated thickness of the strip that are abounded in low temperature which grants higher solidarity to the structure. MS flats are viewed as the most fundamental of steel structures. MS flats are dimensionally high on quality, designed to perfection and accurate. Its applications range from construction to machine fabrication. Jagdamba Steels produce the best quality MS Flats in Nepal

Section and Size(mm)

Tolerance ± 2.5%

Width of Flange (mm)

Tolerance ± 2.5%

40 x 51.6
40 x 61.9
40 x 103.1
40 x 123.8
50 x 52.0
50 x 62.4
50 x 103.9
50 x 124.7
65 x 63.1
65 x 105.1
65 x 126.1





MS FLATS                                                                                                                                                                            weight (Kg/m)

Size (mm)Thickness
34568101216182025
160.60.81.01.31.55.02.32.52.83.1
200.470.80.91.31.61.92.52.83.13.53.9
260.601.01.01.62.02.43.13.53.94.34.9
320.801.31.52.02.43.04.04.55.05.56.3
351.62.8
400.901.31.92.53.13.85.05.76.36.97.8
452.13.54.2
501.202.02.43.13.94.76.37.17.88.69.8
632.53.04.04.95.97.98.99.910.912.4
654.15.16.110.2
753.54.75.97.19.410.611.812.914.7
803.13.85.06.37.510.011.312.613.815.7
1003.94.76.37.89.412.614.015.717.519.6
1254.95.97.89.811.815.717.719.621.625.5
15011.814.118.823.629.4
1606.37.510.012.615.120.122.625.127.631.4
18017.022.625.428.3
2007.89.412.615.718.825.128.331.434.539.2
2509.811.315.719.623.631.435.339.243.249.1
